| Brand Name : | Texas Instruments |
| Model Number : | CSD17573Q5BT |
| Certification : | CE, GCF, ROHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, |
| Supply Ability : | 1000pcs per month |
| Delivery Time : | 3-5 working days after received the payment |

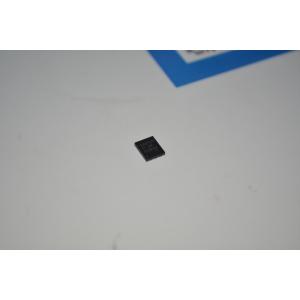

CSD17573Q5BT 40V N-Channel NexFETandtrade; MOSFET with 1.7mandOmega; RDS(on) 75A Current 175anddeg;C Rating Low Qg 5mmandtimes;6mm SON Package AEC-Q101 Qualified andamp; Lead-Free Design
andnbsp;
Features
andbull; LowQgand Qgd
andbull; Ultra-Low RDS(on)
andbull; Low-Thermal Resistance
andbull; Avalanche Rated
andbull; Lead-Free Terminal Plating
andbull; RoHSCompliant
andbull; Halogen Free
andbull; SON5-mmandtimes;6-mmPlastic Package
andnbsp;
Applications
andbull; Point-of-Load Synchronous Buck Converter for Applications in Networking, Telecom, and Computing Systems
andbull; Optimized for Synchronous FET Applications
andnbsp;
Description
This 0.84-mandOmega;, 30-V, SON 5-mm andtimes; 6-mm NexFETandtrade; power MOSFET is designed to minimize losses in power conversion applications.
andnbsp;
INFORMATION
Category | andnbsp; | |
Mfr | andnbsp; | |
Series | andnbsp; | |
Packaging | Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reelandreg; | andnbsp; andnbsp; andnbsp; |
Part Status | Active | andnbsp; |
FET Type | andnbsp; | |
Technology | andnbsp; | |
Drain to Source Voltage (Vdss) | 30 V | andnbsp; |
Current - Continuous Drain (Id) @ 25anddeg;C | andnbsp; | |
Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | andnbsp; |
Rds On (Max) @ Id, Vgs | 1mOhm @ 35A, 10V | andnbsp; |
Vgs(th) (Max) @ Id | 1.8V @ 250andmicro;A | andnbsp; |
Gate Charge (Qg) (Max) @ Vgs | 64 nC @ 4.5 V | andnbsp; |
Vgs (Max) | andplusmn;20V | andnbsp; |
Input Capacitance (Ciss) (Max) @ Vds | 9000 pF @ 15 V | andnbsp; |
FET Feature | - | andnbsp; |
Power Dissipation (Max) | 3.2W (Ta), 195W (Tc) | andnbsp; |
Operating Temperature | -55anddeg;C ~ 150anddeg;C (TJ) | andnbsp; |
Grade | - | andnbsp; |
Qualification | - | andnbsp; |
Mounting Type | Surface Mount | andnbsp; |
Supplier Device Package | 8-VSON-CLIP (5x6) | andnbsp; |
Package / Case | andnbsp; | |
Base Product Number |
andnbsp;
Drawing
