    LM25118MHX/NOPB Buck Controller 4.5V-42V Input 75V/5A Switches 500kHz-1MHz Freq Sync Rectification Adjustable UVLO Thermal Shutdown 20-Pin HTSSOP Wide

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : LM25118MHX/NOPB
    Certification : CE, GCF, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5 working days after received the payment
    • Product Details
    • Company Profile

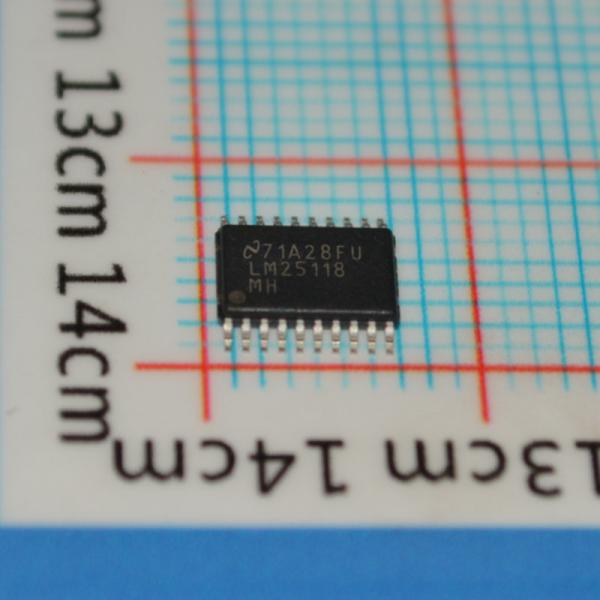

    LM25118MHX/NOPB Buck Controller 4.5V-42V Input 75V/5A Switches 500kHz-1MHz Freq Sync Rectification Adjustable UVLO Thermal Shutdown 20-Pin HTSSOP Wide

    LM25118MHX/NOPB Buck Controller 4.5V-42V Input 75V/5A Switches 500kHz-1MHz Freq Sync Rectification Adjustable UVLO Thermal Shutdown 20-Pin HTSSOP Wide Temp Range

    andnbsp;

    Features

    andbull; InputVoltageOperatingRangeFrom3Vto42V

    andbull; EmulatedPeakCurrentModeControl

    andbull; SmoothTransitionBetweenStep-DownandStep UpModes

    andbull; SwitchingFrequencyProgrammableto500KHz

    andbull; OscillatorSynchronizationCapability

    andbull; InternalHighVoltageBiasRegulator

    andbull; IntegratedHighandLow-SideGateDrivers

    andbull; ProgrammableSoft-StartTime

    andbull; Ultra-LowShutdownCurrent

    andbull; EnableInput

    andbull; WideBandwidthErrorAmplifier

    andbull; 1.5%FeedbackReferenceAccuracy

    andbull; ThermalShutdown

    andbull; Package:20-PinHTSSOP(ExposedPad)

    andbull; CreateaCustomDesignUsingtheLM25118With theWEBENCHandreg;PowerDesigner

    andnbsp;

    Applications

    IndustrialBuck-BoostSupplies

    andnbsp;

    Description

    The LM25118 wide voltage range Buck-Boost switching regulator controller features all of the functions necessary to implement a high performance, cost-efficient Buck-Boost regulator usingaminimumofexternal components.TheBuck Boost topologymaintains output voltage regulation when the input voltage iseither less thanorgreater than theoutput voltagemaking it especiallysuitable for automotiveapplications. TheLM25118operates as a buck regulator while the input voltage is sufficientlygreater than theregulatedoutput voltage andgradually transitions to thebuck-boostmodeas the input voltageapproaches theoutput. Thisdual mode approachmaintains regulation over a wide range of input voltages with optimal conversion efficiency in thebuckmodeandaglitch-freeoutput duringmode transitions. This easy-to-use controller includesdrivers for thehigh-sidebuckMOSFETand the low-sideboostMOSFET. Thecontrolmethodof the regulator is based upon current mode control using an emulated current ramp. Emulated current modecontrol reducesnoisesensitivityof thepulse widthmodulation circuit, allowing reliable control of the very small duty cycles necessary inhigh input voltage applications. Additional protection features include current limit, thermal shutdown, and an enable input. The device is available in a power enhanced, 20-pin HTSSOP package featuring an exposeddieattachpadtoaidthermaldissipation.

    andnbsp;

    INFORMATION

    Category
    Manufacturer
    Texas Instruments
    Series
    -
    Packaging
    Tape andamp; Reel (TR)
    Cut Tape (CT)
    Digi-Reelandreg;
    Part Status
    Active
    Output Type
    Transistor Driver
    Function
    Step-Up, Step-Down
    Output Configuration
    Positive
    Topology
    Buck, Boost
    Number of Outputs
    1
    Output Phases
    1
    Voltage - Supply (Vcc/Vdd)
    3V ~ 42V
    Frequency - Switching
    Up to 500kHz
    Duty Cycle (Max)
    75%
    Synchronous Rectifier
    No
    Clock Sync
    Yes
    Serial Interfaces
    -
    Control Features
    Enable, Frequency Control, Ramp, Soft Start
    Operating Temperature
    -40anddeg;C ~ 125anddeg;C (TJ)
    Mounting Type
    Surface Mount
    Package / Case
    20-PowerTSSOP (0.173andquot;, 4.40mm Width)
    Supplier Device Package
    20-HTSSOP
    Base Product Number

    andnbsp;

    Drawing
