| Brand Name : | Texas Instruments |
| Model Number : | TLV2316IDR |
| Certification : | CE, GCF, ROHS |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, |
| Supply Ability : | 1000pcs per month |
| Delivery Time : | 3-5 working days after received the payment |

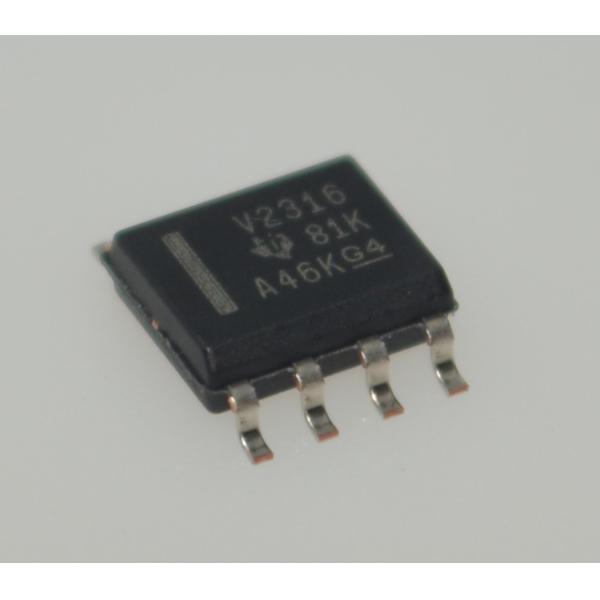

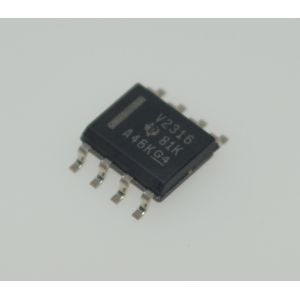

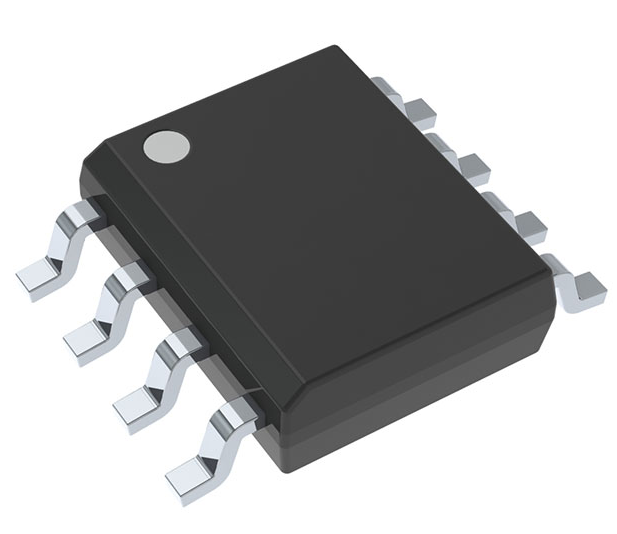

TLV2316IDR 1.8V Low-Voltage Low-Power 300andmicro;A Op Amp with 3MHz Bandwidth Rail-to-Rail I/O 0.3V/andmicro;s Slew Rate -40 to 125anddeg;C Range Tiny SOIC-8 Package
andnbsp;
Features
andbull; Unity-GainBandwidth:10MHz
andbull; LowIQ:400andmicro;A/ch
andnbsp; andndash;ExcellentPower-to-BandwidthRatio
andnbsp; andndash;StableIQOverTemperatureandSupply Range
andbull; WideSupplyRange:1.8Vto5.5V
andbull; LowNoise:12nV/andradic;Hzat1kHz
andbull; LowInputBiasCurrent:andplusmn;10pA
andbull; OffsetVoltage:andplusmn;0.75mV
andbull; Unity-GainStable
andbull; InternalRFI/EMIFilter
andbull; ExtendedTemperatureRange:andndash;40anddeg;Cto+125anddeg;C
andnbsp;
Applications
andbull; Battery-PoweredInstruments:
andnbsp; andndash;Consumer, Industrial,Medical
andnbsp; andndash;Notebooks,PortableMediaPlayers
andbull; SensorSignalConditioning
andbull; BarcodeScanners
andbull; ActiveFilters
andbull; Audio
andnbsp;
Description
TheTLV316(single),TLV2316(dual), andTLV4316 (quad)devicescompriseafamilyofgeneral-purpose, low-power operational amplifiers. Features such as rail-to-rail input and output swings, low quiescent current (400 andmu;A/ch typical) combinedwith awide bandwidthof10MHz,andvery-lownoise(12nV/andradic;Hz at 1kHz)make this familyattractive foravarietyof applications that require a good balance between cost and performance. The low input bias current supports operational amplifiers that are used in applicationswithmegaohmsourceimpedances.
Therobustdesignof theTLVx316providesease-of use to the circuit designerandmdash;a unity-gain stable, integratedRFI/EMI rejection filter, nophasereversal in overdrive condition, and high electrostatic discharge(ESD)protection(4-kVHBM).
These devices are optimized for low-voltage operationas lowas1.8V(andplusmn;0.9V)andup to5.5V (andplusmn;2.75V). This latest additionof low-voltageCMOS operational amplifiers to theportfolio, inconjunction withtheTLVx313andTLVx314series,offerafamily of bandwidth, noise, andpower options tomeet the needsofawidevarietyofapplications.
andnbsp;
INFORMATION
Category | andnbsp; | |
Mfr | andnbsp; | |
Series | - | andnbsp; |
Packaging | Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reelandreg; | andnbsp; andnbsp; andnbsp; |
Part Status | Active | andnbsp; |
Amplifier Type | andnbsp; | |
Number of Circuits | 2 | andnbsp; |
Output Type | Rail-to-Rail | andnbsp; |
Slew Rate | 6V/andmicro;s | andnbsp; |
Gain Bandwidth Product | 10 MHz | andnbsp; |
Current - Input Bias | 10 pA | andnbsp; |
Voltage - Input Offset | 750 andmicro;V | andnbsp; |
Current - Supply | 400andmicro;A (x2 Channels) | andnbsp; |
Current - Output / Channel | 50 mA | andnbsp; |
Voltage - Supply Span (Min) | 1.8 V | andnbsp; |
Voltage - Supply Span (Max) | 5.5 V | andnbsp; |
Operating Temperature | -40anddeg;C ~ 125anddeg;C | andnbsp; |
Mounting Type | Surface Mount | andnbsp; |
Package / Case | 8-SOIC (0.154andquot;, 3.90mm Width) | andnbsp; |
Supplier Device Package | 8-SOIC | andnbsp; |
Base Product Number |
