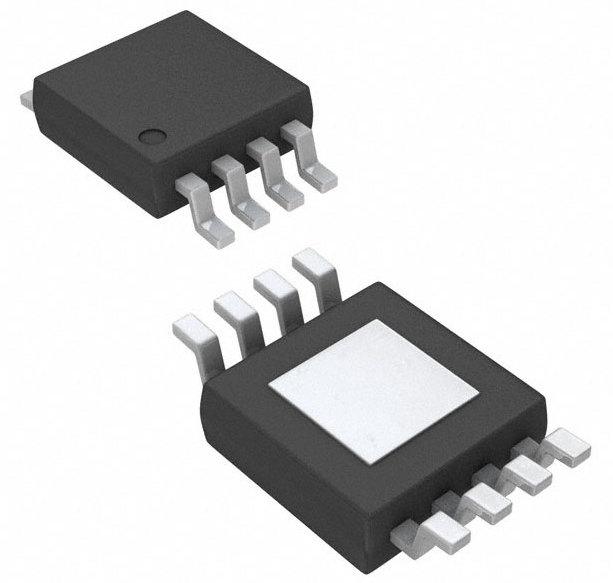

    OPA1632DGNR Fully-Differential I/O High 2.4GHz Gain Bandwidth Ultra-Low Noise and THD High 180mA Output Wide Supply Range RF Shielding Industry

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : OPA1632DGNR
    Certification : CE, GCF, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5 working days after received the payment
    • Product Details
    • Company Profile

    OPA1632DGNR Fully-Differential I/O High 2.4GHz Gain Bandwidth Ultra-Low Noise and THD High 180mA Output Wide Supply Range RF Shielding Industry

    OPA1632DGNR Fully-Differential I/O High 2.4GHz Gain Bandwidth Ultra-Low Noise andamp; THD High 180mA Output Wide Supply Range RF Shielding Industry-Standard Package

    andnbsp;

    Features

    andbull; Excellent sound quality

    andbull; Ultra low distortion: 0.000028%

    andbull; Low noise: 1.25 nV/andradic;Hz

    andbull; High speed:

    andnbsp; andndash;Slew rate: 72 V/andmu;s

    andnbsp; andndash;Gain bandwidth product: 180 MHz

    andbull; Fully differential architecture:

    andnbsp; andndash;Balanced input and output converts single ended input to balanced differential output

    andbull; Wide supply range: andplusmn;2.5 V to andplusmn;15 V

    andbull; Shutdown current: 0.85 mA (VS = andplusmn; 5 V)

    andbull; Temperature range: andndash;40anddeg;C to +85anddeg;C

    andnbsp;

    Applications

    andbull; Professional audio mixer or control surface

    andbull; Professional microphones and wireless systems

    andbull; Professional speaker systems

    andbull; Professional audio amplifier

    andbull; Soundbar

    andbull; Turntable

    andbull; Professional video camera

    andbull; Guitar and other instrument amplifier

    andbull; Data acquisition (DAQ)

    andnbsp;

    Description

    The OPA1632 is a fully differential amplifier (FDA) designed to drive high-performance audio analog-to digital converters (ADCs) or as a predriver for class-D amplifiers.

    The OPA1632 delivers excellent audio quality, very low noise, large output voltage swing, and high current drive. The OPA1632 has an excellent gain bandwidth of 180 MHz, and a very fast slew rate of 72 V/andmu;s that helps to produce exceptionally low distortion. A very low input voltage noise of 1.25 nV/andradic;Hz further provides maximum signal-to noise ratio and dynamic range.

    The flexibility of the fully differential architecture allows for easy implementation of a single-ended to fully differential output conversion. Differential output reduces even-order harmonics and minimizes common-mode noise interference. The OPA1632 provides excellent performance when used to drive high-performance audio ADCs such as the PCM1804. A shutdown feature is included to save power when the device is not in use.

    The OPA1632 is characterized to operate from 40anddeg;C to +85anddeg;C and is available in an SO-8 package and a thermally-enhanced HVSSOP-8 PowerPADandtrade; integrated circuit package.

    andnbsp;

    INFORMATION

    Category
    Mfr
    Series
    -
    Packaging
    Tape andamp; Reel (TR)
    Cut Tape (CT)
    Digi-Reelandreg;
    Part Status
    Active
    Amplifier Type
    Number of Circuits
    1
    Output Type
    Differential
    Slew Rate
    50V/andmicro;s
    -3db Bandwidth
    180 MHz
    Current - Input Bias
    2 andmicro;A
    Voltage - Input Offset
    500 andmicro;V
    Current - Supply
    14mA
    Current - Output / Channel
    85 mA
    Voltage - Supply Span (Min)
    5 V
    Voltage - Supply Span (Max)
    32 V
    Operating Temperature
    -40anddeg;C ~ 85anddeg;C
    Mounting Type
    Surface Mount
    Package / Case
    8-TSSOP, 8-MSOP (0.118andquot;, 3.00mm Width) Exposed Pad
    Supplier Device Package
    8-HVSSOP
    Base Product Number

    andnbsp;
