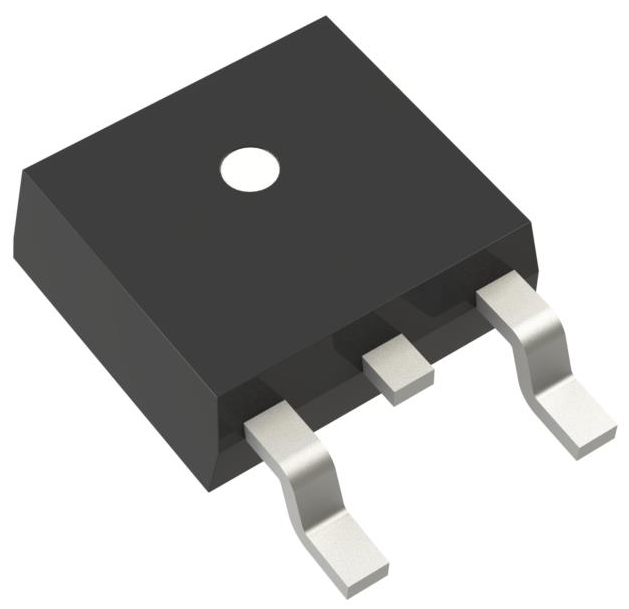

    LM1117IDTX-3.3/NOPB 3.3V 800mA LDO Regulator with 1V Dropout 0.4% Accuracy Current/Thermal Protection Stable with Ceramic Caps SOT-223 Package -40°C

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : LM1117IDTX-3.3/NOPB
    Certification : CE, GCF, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5 working days after received the payment
    • Product Details
    • Company Profile

    LM1117IDTX-3.3/NOPB 3.3V 800mA LDO Regulator with 1V Dropout 0.4% Accuracy Current/Thermal Protection Stable with Ceramic Caps SOT-223 Package -40°C

    LM1117IDTX-3.3/NOPB 3.3V 800mA LDO Regulator with 1V Dropout 0.4% Accuracy Current/Thermal Protection Stable with Ceramic Caps SOT-223 Package -40anddeg;C to +125anddeg;C Range

    andnbsp;

    Features

    andbull; For a newer drop-in alternative, see the TLV1117

    andbull; For drop-in replacements in fixed output SOT-223 package configuration and improved functionality, see the TLV761

    andbull; Available in 1.8 V, 2.5 V, 3.3 V, 5 V, and adjustable versions

    andbull; Space-saving SOT-223 and WSON packages

    andbull; Current limiting and thermal protection

    andbull; Output current: 800 mA

    andbull; Line regulation: 0.2% (maximum)

    andbull; Load regulation: 0.4% (maximum)

    andbull; Temperature range:

    andnbsp; andndash; LM1117: 0anddeg;C to +125anddeg;C

    andnbsp; andndash; LM1117I: andndash;40anddeg;C to +125anddeg;C

    andnbsp;

    Applications

    andbull; AC drive power stage modules

    andbull; Merchant network and server PSU

    andbull; Industrial AC/DC

    andbull; Ultrasound scanners

    andbull; Servo drive control modules

    andnbsp;

    Description

    The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current.

    The LM1117 is available in an adjustable version, which can set the output voltage from 1.25 V to 13.8 V with only two external resistors. In addition, the device is available in five fixed voltages, 1.8 V, 2.5 V, 3.3 V, and 5 V.

    The LM1117 offers current limiting and thermal shutdown. The circuit includes a Zener trimmed band gap reference to assure output voltage accuracy to within andplusmn;1%.

    A minimum of 10-andmicro;F tantalum capacitor is required at the output to improve the transient response and stability.

    andnbsp;

    INFORMATION

    Category
    Mfr
    Series
    Packaging
    Tape andamp; Reel (TR)
    Cut Tape (CT)
    Digi-Reelandreg;
    Part Status
    Active
    Output Configuration
    Output Type
    Number of Regulators
    1
    Voltage - Input (Max)
    15V
    Voltage - Output (Min/Fixed)
    3.3V
    Voltage - Output (Max)
    -
    Voltage Dropout (Max)
    1.2V @ 800mA
    Current - Output
    Current - Quiescent (Iq)
    5 mA
    Current - Supply (Max)
    10 mA
    PSRR
    75dB (120Hz)
    Control Features
    -
    Protection Features
    Over Current, Over Temperature
    Operating Temperature
    -40anddeg;C ~ 125anddeg;C
    Mounting Type
    Surface Mount
    Package / Case
    TO-252-3, DPAK (2 Leads + Tab), SC-63
    Supplier Device Package
    TO-252-3
    Base Product Number

    andnbsp;

    Drawing
