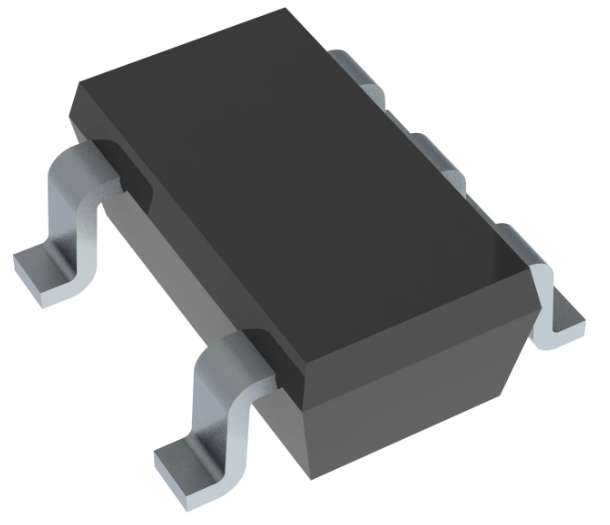

    Precision LMP2011MF Op Amp 5.5V Rail-to-Rail I/O 950μA Quiescent Current 3MHz GBW 2.5V to 5.5V Operation -40°C to 125°C Range Tiny SOT-23 Package

    Ask Lasest Price
    Brand Name : Texas Instruments
    Model Number : LMP2011MF
    Certification : CE, GCF, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5 working days after received the payment
    • Product Details
    • Company Profile

    Precision LMP2011MF Op Amp 5.5V Rail-to-Rail I/O 950μA Quiescent Current 3MHz GBW 2.5V to 5.5V Operation -40°C to 125°C Range Tiny SOT-23 Package

    Precision LMP2011MF Op Amp 5.5V Rail-to-Rail I/O 950andmu;A Quiescent Current 3MHz GBW 2.5V to 5.5V Operation -40anddeg;C to 125anddeg;C Range Tiny SOT-23 Package

    andnbsp;

    Features

    (For VS = 5 V, Typical Unless Otherwise Noted) 1

    andbull; LowEnsured VOS Over Temperature 60 andmicro;V

    andbull; LowNoise with No 1/f 35nV/andradic;Hz

    andbull; High CMRR130 dB

    andbull; High PSRR 120 dB

    andbull; High AVOL 130 dB

    andbull; WideGain-Bandwidth Product 3 MHz

    andbull; High Slew Rate 4 V/andmicro;s

    andbull; LowSupply Current 930 andmicro;A

    andbull; Rail-to-Rail Output 30 mV

    andbull; NoExternal Capacitors Required

    andnbsp;

    Applications

    andbull; Precision Instrumentation Amplifiers

    andbull; Thermocouple Amplifiers

    andbull; Strain Gauge Bridge Amplifier

    andnbsp;

    Description

    The LMP201x series are the first members of TIand#39;s new LMPandtrade; precision amplifier family. The LMP201x series offers unprecedented accuracy and stability in space-saving miniature packaging, offered at an affordable price. This device utilizes patented auto zero techniques to measure and continually correct the input offset error voltage. The result is an amplifier which is ultra-stable over time and temperature. It has excellent CMRR and PSRR ratings, and does not exhibit the familiar 1/f voltage and current noise increase that plagues traditional amplifiers. The combination of the LMP201x characteristics makes it a good choice for transducer amplifiers, high gain configurations, ADC buffer amplifiers, DAC I-V conversion, and any other 2.7-V to 5-V application requiring precision and long term stability.

    Other useful benefits of the LMP201x are rail-to-rail output, a low supply current of 930 andmicro;A, and wide gain-bandwidth product of 3 MHz. These versatile features found in the LMP201x provide high performance and ease of use.

    andnbsp;

    INFORMATION

    Category
    Mfr
    Series
    Packaging
    Tape andamp; Reel (TR)
    Part Status
    Obsolete
    Amplifier Type
    Number of Circuits
    1
    Output Type
    Rail-to-Rail
    Slew Rate
    4V/andmicro;s
    Gain Bandwidth Product
    3 MHz
    Current - Input Bias
    3 pA
    Voltage - Input Offset
    0.12 andmicro;V
    Current - Supply
    930andmicro;A
    Current - Output / Channel
    17 mA
    Voltage - Supply Span (Min)
    2.7 V
    Voltage - Supply Span (Max)
    5.25 V
    Operating Temperature
    -40anddeg;C ~ 125anddeg;C
    Mounting Type
    Surface Mount
    Package / Case
    SC-74A, SOT-753
    Supplier Device Package
    SOT-23-5
    Base Product Number

    andnbsp;
