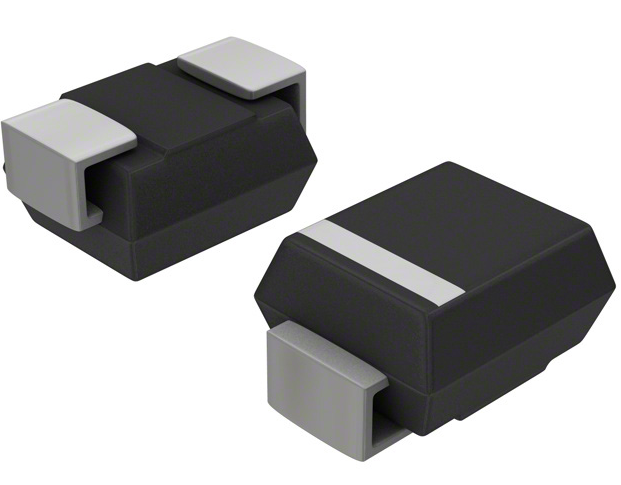

    Buy cheap STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65 from wholesalers

    Buy cheap STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65 from wholesalers
    • Buy cheap STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65 from wholesalers
    • Buy cheap STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65 from wholesalers
    • Buy cheap STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65 from wholesalers

    STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65

    Ask Lasest Price
    Brand Name : STMicroelectronics
    Model Number : STPS1H100A
    Certification : CE, GCF, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,
    Supply Ability : 1000pcs per month
    Delivery Time : 3-5 working days after received the payment
    • Product Details
    • Company Profile

    STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65

    STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65 to 175anddeg;C TJ SOD-123FL Package

    andnbsp;

    Features

    andbull; Negligible switching losses

    andbull; High junction temperature capability

    andbull; Low leakage current

    andbull; Good trade off between leakage current and forward voltage drop

    andbull; Avalanche capability specified

    andbull; ECOPACK2 halogen-free component

    andnbsp;

    Applications

    1:Automotive Electronics

    Explanation: As it is AEC-Q101 qualified, it is an ideal choice for automotive applications.

    Specific Applications: DC-DC converters in Engine Control Units (ECUs), Body Control Modules (BCMs), lighting systems, infotainment systems, and low-voltage auxiliary power supplies in electric/hybrid vehicles.

    2:Industrial Electronics

    Explanation: Its wide junction temperature range allows it to adapt to harsh industrial environments.

    Specific Applications: Power supplies for Programmable Logic Controllers (PLCs), sensors, motor drive control boards, and low-voltage power supplies in industrial automation equipment.

    3:Consumer Electronics andamp; Computing

    Explanation: Its high efficiency and small package make it suitable for space-constrained devices that focus on energy efficiency.

    Specific Applications: Power adapters for laptops, internal DC-DC power supplies in desktops, server power supplies, and power boards for TVs and gaming consoles.

    4:Communication Equipment

    Explanation: Its fast switching characteristic is crucial for efficient Switch-Mode Power Supplies (SMPS).

    Specific Applications: Power units for network switches, routers, base stations, and other telecommunications infrastructure.

    andnbsp;

    Description

    Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters.

    Packaged in SMA, SMA Flat, SMA Flat Notch,or SMB, this diode is ideal for use in lighting and telecom power applications.

    andnbsp;

    INFORMATION

    Category
    Mfr
    Series
    -
    Packaging
    Tape andamp; Reel (TR)
    Cut Tape (CT)
    Digi-Reelandreg;
    Part Status
    Active
    Technology
    Voltage - DC Reverse (Vr) (Max)
    100 V
    Current - Average Rectified (Io)
    1A
    Voltage - Forward (Vf) (Max) @ If
    770 mV @ 1 A
    Speed
    Fast Recovery =andlt; 500ns, andgt; 200mA (Io)
    Current - Reverse Leakage @ Vr
    4 andmicro;A @ 100 V
    Capacitance @ Vr, F
    -
    Mounting Type
    Package / Case
    Supplier Device Package
    DO-214AC (SMA)
    Operating Temperature - Junction
    175anddeg;C (Max)
    Base Product Number

    andnbsp;

    Drawing
