SK70KQ16 1600V 70A Quick IGBT Module Low Vce(sat) 2.3V Fast Turn-off Soft Recovery Diode High Temp 150°C Low Loss High Power Density For Compact UPS and Inverters
Features
Compact Design
One screw mounting
Heat transfer and isolationthrough direct copper bondedaluminium oxide ceramic (DBC)
Glass passived thyristor chips
Up to 1600V reverse voltage
UL recognized, file no. E 63 532
Applications
Soft starters
Light control (studios, theaters...)
Temperature control
Description
The SK70KQ16 is a high-voltage, fast-switching IGBT power module designed for efficient and compact power conversion systems. It combines a 1600V blocking voltage with a 70A current rating, featuring advanced "Quick" IGBT technology that delivers a low collector-emitter saturation voltage (Vce(sat)) for reduced conduction losses and fast turn-off switching for lower switching losses. It is paired with a soft-recovery anti-parallel freewheeling diode to minimize voltage spikes and electromagnetic interference (EMI). This optimized balance of low losses enables higher switching frequencies, contributing to increased power density and smaller system size. Its robust construction ensures reliable operation in demanding industrial environments.
INFORMATION
| Current (A) | 72 A |
| Dimensions (LxWxH) | 31x24x12 |
| Features |
|
| Housing | SEMITOP 1 |
| Legacy part number | 24302506 |
| Product line | SEMITOP |
| Product Status | In Production |
| Surge current (A) | 900 A |
| Technology | Thyristor / Diode |
| Topology | Thyristor |
| Type | SEMITOP 1 |
| Typical applications |
|
| Voltage (V) | 1600 V |

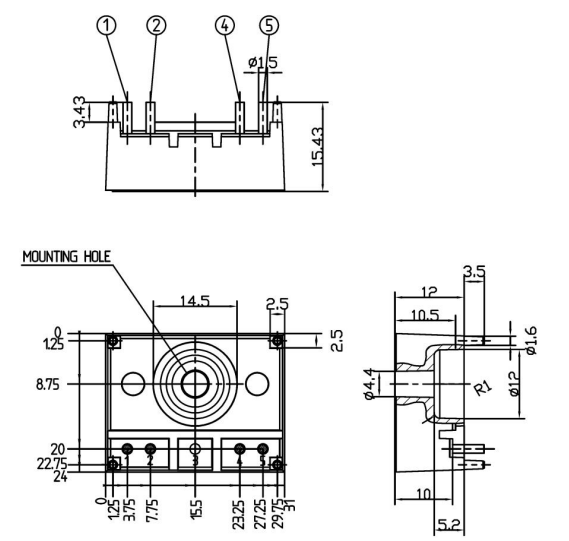

Drawing
