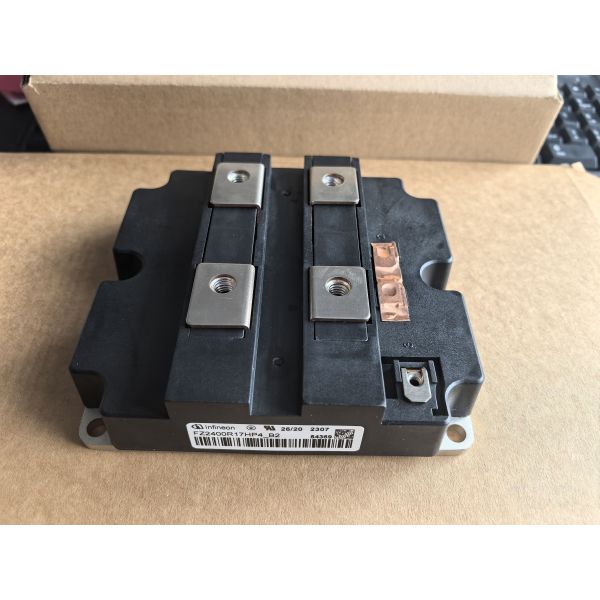

FZ2400R17HP4B2 1700V 2400A HiPerFET 4 IGBT Module High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA For Industrial Drives and UPS
Features
Enlarged diode for regenerative operation
4 kV AC 1min insulation
AlSiC base plate for increased thermal cyclingcapability
Package with CTl> 400
High creepage and clearance distances
High power and thermal cycling capability
High power density
IHM B housing
Applications
Resonant inverter applications
High power converters
Traction drives
Wind turbines
Description
The FZ2400R17HP4B2BOSA2 is a high-power IGBT module engineered for the most demanding high-current applications. Building on advanced HiPerFET technology, it offers an impressive 2400A current rating with a 1700V voltage class. This module is optimized for maximum efficiency, featuring very low saturation voltage (Vce(sat)) and minimal switching losses, which enables high-frequency operation and superior power density in compact system designs. Its robust construction and extended Safe Operating Area (SOA) guarantee high reliability and long-term stability under extreme operational stress.
INFORMATION
Category | ||
Manufacturer | Infineon Technologies | |
Series | ||
Packaging | Tray | |
Part Status | Active | |
IGBT Type | Trench Field Stop | |
Configuration | Half Bridge | |
Voltage - Collector Emitter Breakdown (Max) | 1700 V | |
Current - Collector (Ic) (Max) | 4800 A | |
Power - Max | 13000 W | |
Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 2400A | |
Current - Collector Cutoff (Max) | 5 mA | |
Input Capacitance (Cies) @ Vce | 195 nF @ 25 V | |
Input | Standard | |
NTC Thermistor | No | |
Operating Temperature | -40°C ~ 150°C | |
Mounting Type | Chassis Mount | |
Package / Case | Module | |
Supplier Device Package | Module | |
Base Product Number |
