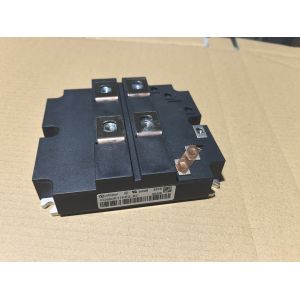

FD800R17KE3_B2 1700V/800A IGBT Module Press-Fit Technology Low VCE(sat) High Speed Switching Low Loss Isolated Baseplate NTC Sensor Industrial Grade for Traction & Heavy Industrial Drives

Features

• Ultra-High Power Rating: 1700 V / 800 A

• Configuration: Dual IGBT

• Low Saturation Voltage: VCE(sat) for minimal conduction losses.

• Low Switching Losses: Enables efficient operation in high-power designs.

• Press-Fit Contact Technology: Enhances reliability and power cycling capability.

• Isolated Baseplate: Ensures electrical safety and simplifies cooling system design.

• Built-in NTC Thermistor: For real-time thermal monitoring and protection.

• High Ruggedness: Excellent short-circuit and overload withstand capability.

Applications

• Traction Drives: Main propulsion inverters for electric and hybrid locomotives, trams, and heavy-duty mining vehicles.

• Heavy Industrial Motor Drives: For controlling very large AC motors in mining, metal rolling, and marine propulsion systems.

• High-Power Wind Turbine Converters: Used in the generator-side and grid-side converters of multi-megawatt wind energy systems.

• High-Voltage DC Transmission (HVDC): STATCOMs and other power quality systems for electrical grid infrastructure.

• Industrial UPS and Power Supplies: Forms the core of the inverter stage in megawatt-class uninterruptible power supplies for critical infrastructure.

Description

The FD800R17KE3_B2 is an ultra-high-power dual IGBT module engineered for the most demanding high-voltage and high-current applications. With an exceptional rating of 1700V and 800A, it sets the benchmark for performance in megawatt-scale power conversion. The module is optimized for maximum efficiency, featuring a very low collector-emitter saturation voltage (VCE(sat)) and low switching losses, which are critical for minimizing energy dissipation in high-power systems.

A key feature of this module is its press-fit contact technology, which provides a robust, solder-free interconnection for enhanced power cycling capability and long-term reliability. It includes a built-in NTC thermistor for precise temperature monitoring and features a fully isolated baseplate for safe and efficient thermal management. Its industrial-grade construction ensures superior ruggedness and stability under the most extreme operating conditions.

INFORMATION

• Configuration
  Chopper
• Dimensions (length)
  130 mm
• Dimensions (width)
  140 mm
• Features
  Enlarged Diode
• Housing
  IHM
• IC(nom) / IF(nom)
  800 A
• IC max
  800 A
• Qualification
  Industrial, Traction
• Technology
  IGBT3 - E3
• VCE(sat) (Tvj=25°C typ)
  2 V
• VCES / VRRM
  1700 V
• VF (Tvj=25°C typ)
  1.55 V
• Voltage Class max
  1700 V
