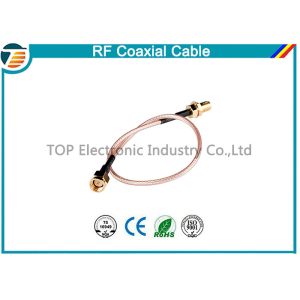

    RG36 RF Coaxial Cable SMA Male Plug To SMA Female Bulkhead Connector

    Ask Lasest Price
    Brand Name : TOP
    Model Number : TOP-SMA-C02
    Certification : CE,ROHS
    Price : 0.9$ ~1.4$/pcs
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 40k pcs/month
    Delivery Time : 3-4 working days after receiving the payment
    • Product Details
    • Company Profile

    RG36 RF Coaxial Cable SMA Male Plug To SMA Female Bulkhead Connector

    RG36 RF Coaxial Cable SMA Male Plug To SMA Female Bulkhead Connector

    andnbsp;

    andnbsp;

    Product introduction:

    it is a SMA male to SMA female bulkhead cable using RG316 coax. This Pasternak SMA male to SMA female bulkhead cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

    andnbsp;

    andnbsp;

    andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; External Material : Plastic, Alloy; Cable Length : 5cm,10cm,15cm or customized.

    andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Connector Color : gold

    andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Cable Fitting: RG316

    andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Net Weight : depends on the cable length, 5cm RG316 weight is 5g.

    andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Package Content : 1 xandnbsp;SMA Male to SMA Female Nut Bulkhead andnbsp;andnbsp;Extension RF Coax pigtail jumper Cable RG316andnbsp;

    andnbsp;

    andnbsp;

    Specification:

    Key Specificationsandnbsp;

    Connector Series 1

    SMA

    Connector Gender 1

    Male

    Connector Polarity 1

    Standard

    Connector Angle 1

    Straight

    Connector Mount Method 1

    None

    Connector Impedance 1

    50

    Connector Series 2

    SMA

    Connector Gender 2

    Female

    Connector Polarity 2

    Standard

    Connector Angle 2

    Straight

    Connector Mount Method 2

    Bulkhead

    Connector Impedance 2

    50

    RF Cable Part Number

    RG316A/U

    RF Cable Type

    RG316

    RF Cable Impedance

    50

    andnbsp;

    andnbsp;

    Cable information:

    RG316

    PTFE Insulated PTFE





    Construction





    Item

    Material

    Diameter(Inch/mm)

    Inner conductor

    silver plated copper clad steel

    7/0.0067+-0.001andnbsp;andnbsp; 7/0.17+_0.02

    Dielectric

    PTFE

    0.06+_0.003andnbsp; 1.52+_0.08

    Shield

    95% silver plated copper braid

    0.078+_0.003andnbsp; 1.98+_0.08

    Jacket

    FEP

    0.098+_0.004andnbsp; 2.49+_0.1

    andnbsp;

    andnbsp;

    RF Cable /RF coaxial cable/ pigtail cable
    RF pigtail cable is used for all RF/wireless equipments.
    RF pigtail cable
    GSM System
    GPS Navigation system
    Wireless communication system
    Car radio
    LAN System

    COMPATIBLE CONNECTORS:
    SMA,SMB,SMC,MCX,MMCX,N,FME,TNC,
    BNC,FAKRA,GT5,U.FL, GSC,IPEX etc

    COMPATIBLE CABLES:
    IMPEDANCE 50andOmega;/75andOmega;/93andOmega;
    RG405/U, RG402/U, RG316/U, RG223/U
    RG188/U, RG179/U, RG174/U, RG142/U
    RG141/U, RG59/U, RG58/U, RG8/U, RG6/U

    andnbsp;

    Our service:

    1. We own Randamp;D team ,give you strongest support !

    2. Fast delivery time ,we keep Long term stock for you .
    3. Factory Sale - Most Competitive price than average level .

    4. good quality, we make test before the shipment

    5. Good after-sales service, we give all customers 1 year Warranty

    andnbsp;

    andnbsp;

    andnbsp;

    cable drawing:

    andnbsp;

    andnbsp;

    andnbsp;


    andnbsp;

    Ourandnbsp; Cable :

    ---Powerful Randamp;D team

    ---Wonderful design solution

    ---Perfect after-sales service

    ---Strict quality testing

    ---Rich cooperation experiences with Communication product manufactures

    ---Competitive price

    andnbsp;

    andnbsp;

    FAQ

    andnbsp;1. Whatand#39;s the Warranty of the Products?

    Answer: In general, all goods with 12 month-warranty after the shipments .

    andnbsp;

    2. andnbsp;How about the defective rateandnbsp;?

    Answer: Less than 1%.

    andnbsp;andnbsp;

    andnbsp;3. Where can customers get the Product Specification and other datasheets?

    Answer: we will send them via email once get the request from the customers.

    andnbsp;

    andnbsp;Our high quality products , competitiveandnbsp; price and professional service, be sure to meet your need for all kinds of components.andnbsp;andnbsp;andnbsp; ^_^
