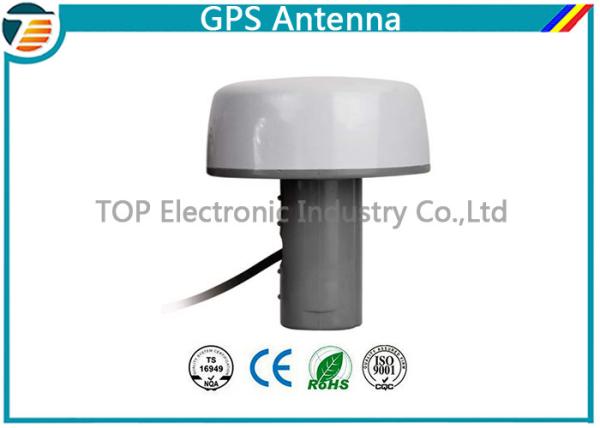

    IP67 Waterproof High Gain GPS Antenna , External Marine GPS Antenna

    Ask Lasest Price
    Brand Name : TOP
    Model Number : TOP-GPS05
    Certification : CE,ROHS
    Price : 10$/PCS
    Payment Terms : T/T,Paypal,, Western Union
    Supply Ability : 20k pcs/ month
    Delivery Time : 3-5 working days after receiving the payment
    • Product Details
    • Company Profile

    IP67 Waterproof High Gain GPS Antenna , External Marine GPS Antenna

    IP67 Waterproof High Gain GPS Antenna ,andnbsp; External Marine Wifi Antenna

    andnbsp;

    andnbsp;

    Description:

    It is designed for the Marine Vessels mast or tall buildings that require long extra cables without signal constraint to the GPS receivers. It is the integration of the high performance GPS patch antenna and a low noise amplifier into an extremely fully waterproof enclosure and when connected to a GPS receiver with 2.5~5.5VDC antenna power, it can provide excellent antenna signal amplification and out-band filtering with rejection for that receiver at 3V DC or 5V DC input Voltage.

    andnbsp;

    andnbsp;

    Features

    • Full waterproof
    • Low noise amplifier
    • Voltage: 2.5 ~5.5 V DC
    • Storage temperature: -40anddeg;C to +100anddeg;C
    • High performance GPS patch antenna

    andnbsp;

    Electrical Characteristics

    1.1 Dielectric Antenna

    Form 1

    No.

    Item

    Specifications

    Post Environmental Tolerance

    1

    Center Frequency(MHz)

    1575.42 MHz

    andplusmn;1MHz

    2

    Band Width(MHz)

    andplusmn;5 MHz

    andplusmn;1 MHz

    3

    V.S.W.R(in BW)

    andlt;1.5

    andmdash;

    4

    Gain(Zenith)

    3andnbsp;dB

    andplusmn;0.5 dB

    5

    Polarization

    RHCP

    andmdash;

    6

    Impedance

    50 andOmega;

    andmdash;

    andnbsp;

    andnbsp;

    1.2 LNA/Filter

    Form 2

    No.

    Item

    Specifications

    Post Environmental Tolerance

    1

    LNA Gain

    42andplusmn;2 dB

    andplusmn;2.5 dB

    2

    Noise Figure

    andlt;1

    andmdash;

    3

    Filter Insertion Loss

    andlt;3db

    --

    4

    Ex-band Attenuation

    35dB@CFandplusmn;50MHz/50dB@CFandplusmn;100MHz

    5

    Supply Voltage

    2.2~5V DC

    andnbsp;

    andnbsp;

    1.3andnbsp;andnbsp; Mechanical

    Form 3

    No.

    Item

    Specification

    1

    Cable

    RG174 3m/5m or others

    2

    Connector

    SMA/MMCX/FAKRA or others

    3

    Plastic Housing

    Black

    4

    Mounting

    screw

    andnbsp;

    andnbsp;

    Application:

    andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Asset tracking

    andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Vehicle tracking

    andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Positioning applications

    andnbsp;

    andnbsp;

    andnbsp;

    Drawing:

    andnbsp;

    andnbsp;

    andnbsp;

    andnbsp;

    Click here to find the data sheet

    andnbsp;

    TOP-GPS05.pdf

    andnbsp;

    andnbsp;

    ----------------------------------------------------------------------------------------------------------

    Ourandnbsp; Antenna :

    ---Powerful Randamp;D team

    ---Wonderful design solution

    ---Perfect after-sales service

    ---Strict quality testing

    ---Rich cooperation experiences with Communication product manufactures

    ---Competitive price

    andnbsp;

    FAQ

    andnbsp;1. Whatand#39;s the Warranty of the Products?

    Answer: In general, all goods with 12 month-warranty after the shipments .

    andnbsp;

    2. andnbsp;How about the defective rateandnbsp;?

    Answer: Less than 1%.

    andnbsp;andnbsp;

    andnbsp;3. Where can customers get the Product Specification and other datasheets?

    Answer: we will send them via email once get the request from the customers.

    andnbsp;

    andnbsp;Our high quality products , competitiveandnbsp; price and professional service, be sure to meet your need for all kinds of components.andnbsp;andnbsp;andnbsp; ^_^
